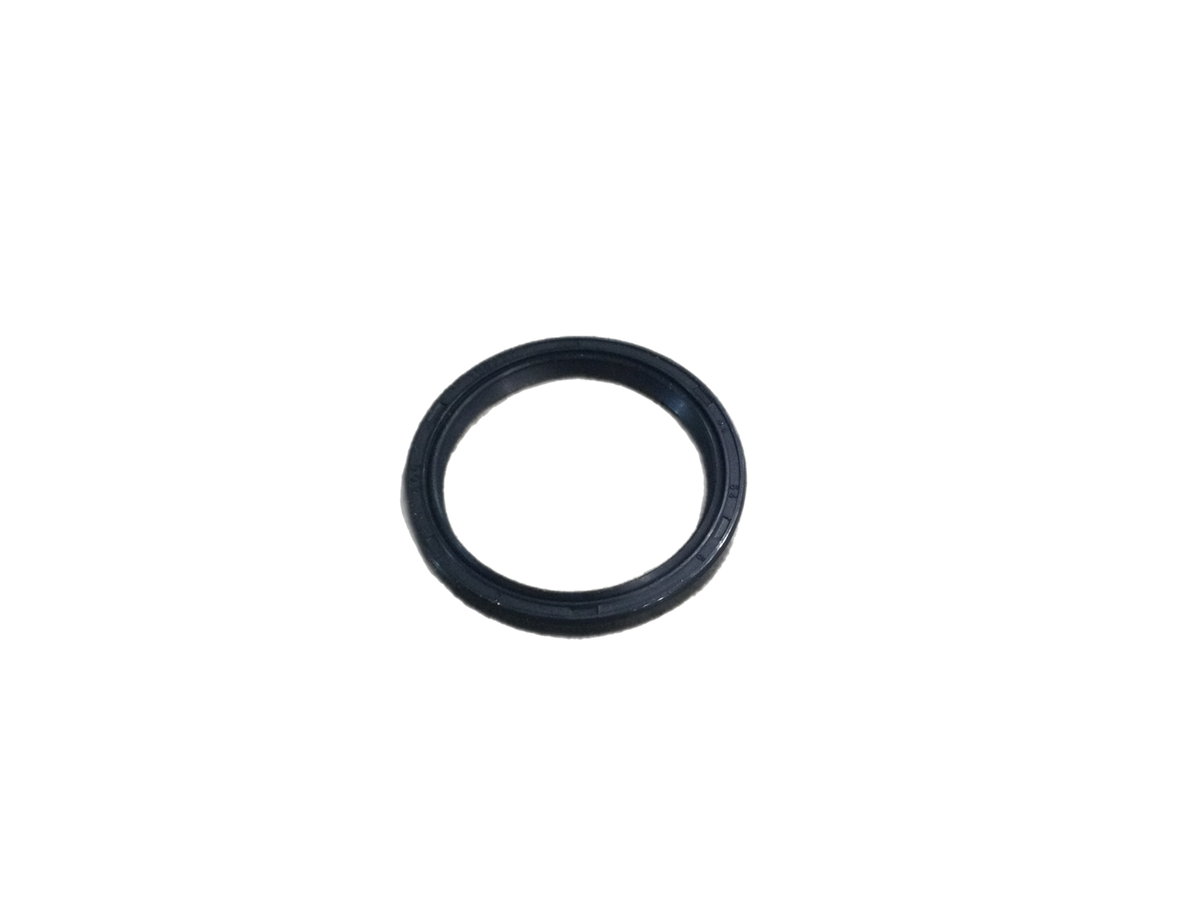

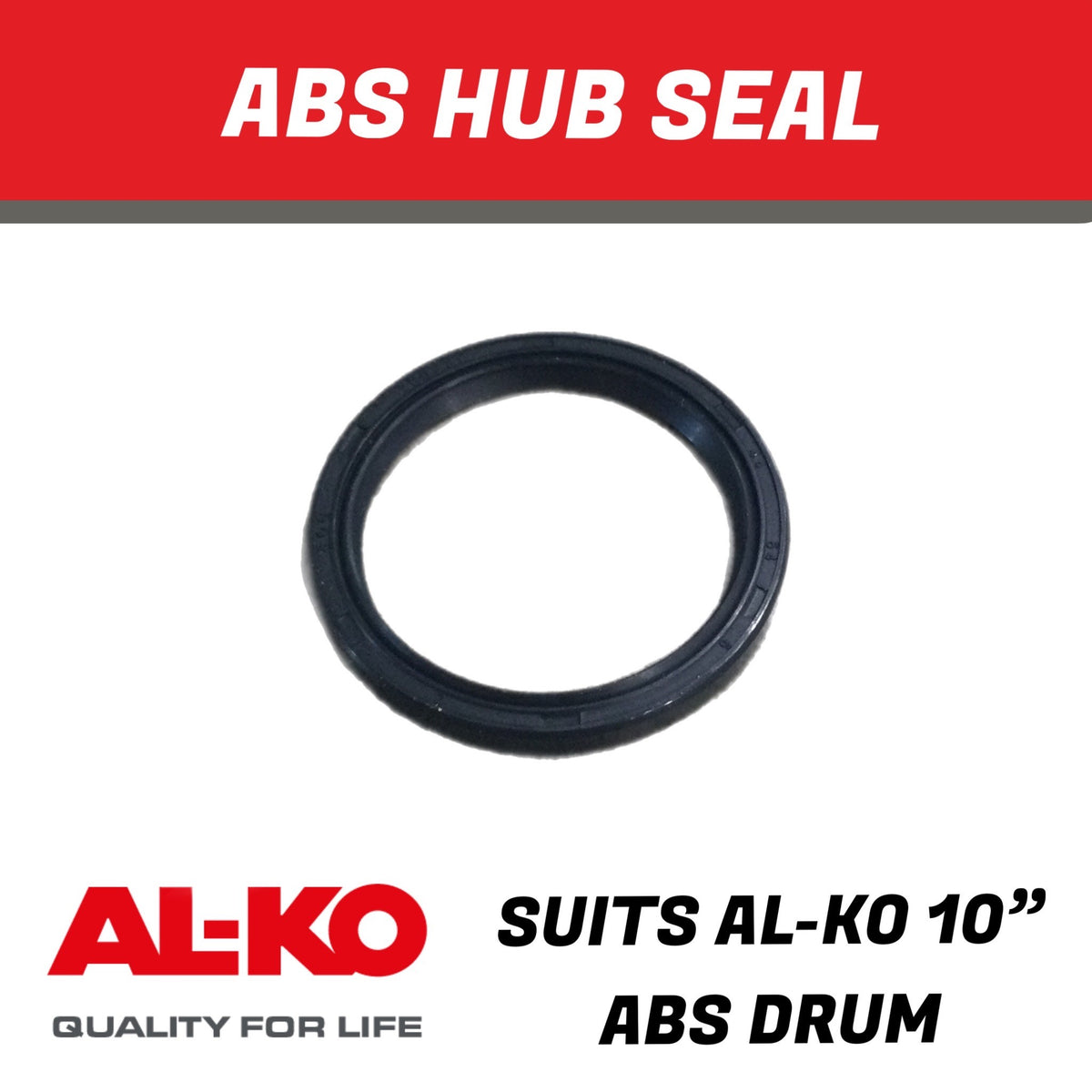

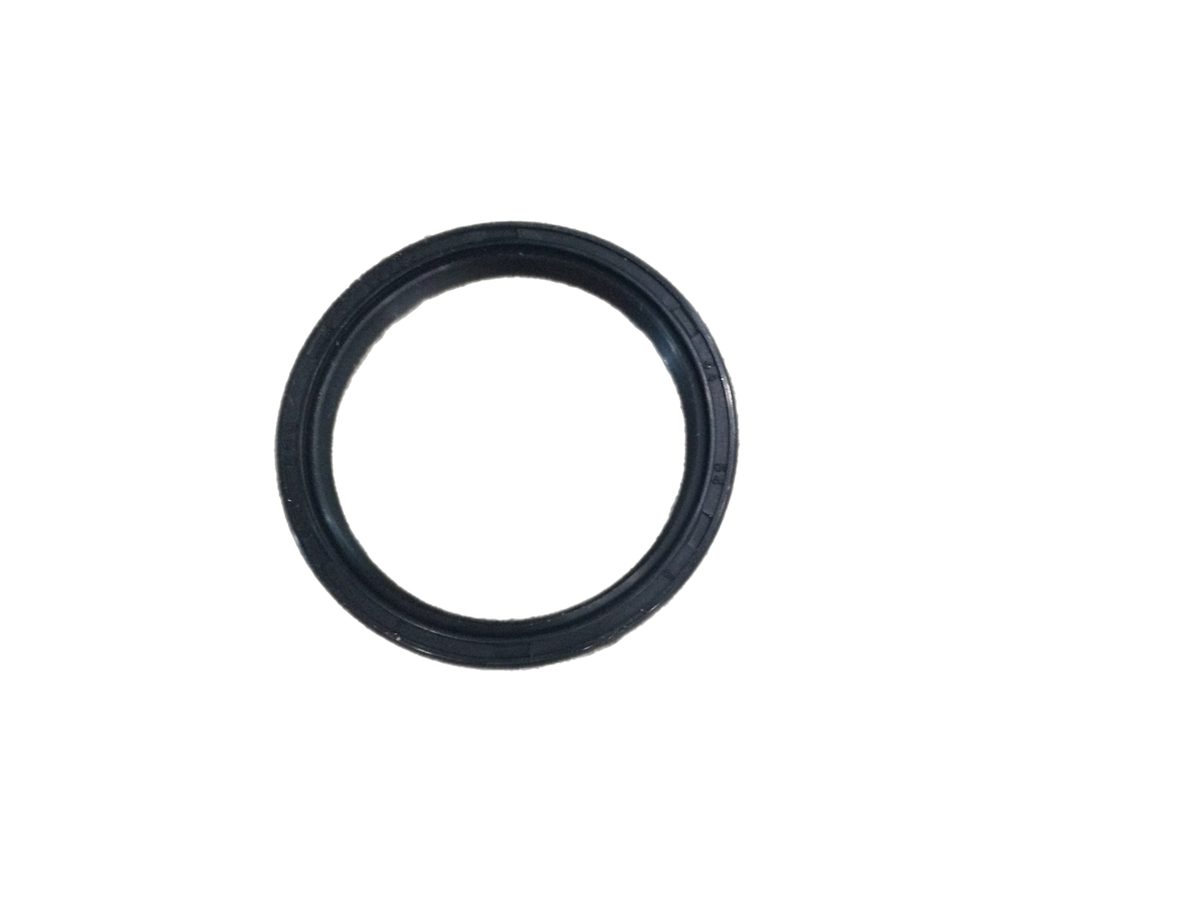

Hub Oil Seal – 10" ABS Tow Assist – 44 x 54 x 6mm | 333132

Replacement Hub Oil Seal for 10" ABS Tow Assist Hubs – 44 x 54 x 6mm

This replacement hub oil seal is designed for compatible 10-inch ABS Tow Assist trailer hub assemblies requiring a 44mm ID × 54mm OD × 6mm wide oil seal.

The hub seal is an important component of the trailer hub assembly, helping retain lubricant within the hub while providing a barrier against dirt, dust and other contaminants.

Ideal when servicing, rebuilding or replacing components in a compatible ABS Tow Assist hub.

Key Features

• Replacement trailer hub oil seal
• Suits compatible 10" ABS Tow Assist hubs
• 44mm inside diameter
• 54mm outside diameter
• 6mm width
• Helps retain lubricant within the hub
• Helps prevent dirt and contaminants entering the hub
• Ideal for hub servicing and maintenance
• SKU 333132

Specifications

Seal Dimensions

44mm ID × 54mm OD × 6mm Width

Oil seals can look very similar but vary by only a few millimetres, so checking all three measurements before ordering is important.

For the correct fit, compare the dimensions of your existing seal with:

44mm inside diameter × 54mm outside diameter × 6mm wide.

When Should a Hub Oil Seal Be Replaced?

Consider replacing the hub seal whenever the hub is dismantled for servicing, particularly if the existing seal is:

• Leaking lubricant
• Damaged or distorted
• Hardened or cracked
• Showing signs of wear
• Removed during a hub or bearing service

A damaged hub seal can allow lubricant to escape and contaminants to enter the bearing area, potentially reducing bearing service life.

Ideal For

• ABS Tow Assist trailer hubs
• 10" trailer hub servicing
• Caravan hub maintenance
• Trailer bearing servicing
• Replacement of damaged or leaking hub seals

What's Included

• 1 × Hub Oil Seal – 44 x 54 x 6mm

Important – Check Dimensions Before Ordering

Please confirm your existing seal dimensions before ordering.

This seal measures:

44mm ID × 54mm OD × 6mm wide

Do not select a hub seal based solely on the brake drum diameter, as different hub and axle configurations can use different seals.
