AL-KO HT Holden Gal Brake Disc with Holden Bearings

AL-KO HT Holden Gal Brake Disc with Holden Bearings

Regular price $125.00 AUD
Regular price Sale price $125.00 AUD
Sale Sold out

Disc Hub - HT Holden - Galvanised - Chinese LM Bearings - Marine Seal

Part Number: 441290



Disc Hub - HT Holden - Galvanised - Chinese LM Bearings - Marine Seal



All of AL-KO's hubs are manufactured from high grade ductile iron to give maximum achievable strength.
Some of AL-KO's hubs are available in zinc plated or hot dipped galvanised finish as well as the traditional raw cast finish.

The capacity of a hub is dependent on the size of wheel bearings fitted and such dimensional limits such as flange diameter and the available hole in the wheel to which it is fitted (on the hub this is the hub outer boss dimension).

To ascertain what hub from the vast AL-KO range is required it is important to know the following:

  • Total load you expect a pair of hubs to carry in kg.
  • Wheel bearing type to be fitted (LM, slimline, 1.5 t, etc).
  • Wheel drilling pattern (4 stud Datsun, 5 stud Mini, 5 Stud HQ Holden, 5 stud Ford, 6 stud Landcruiser).



Disc Hub, HT Holden Stud Pattern (5x 4.25” (107.95mm) PCD))
Fitted with 7/16” UNF wheel studs and nuts.

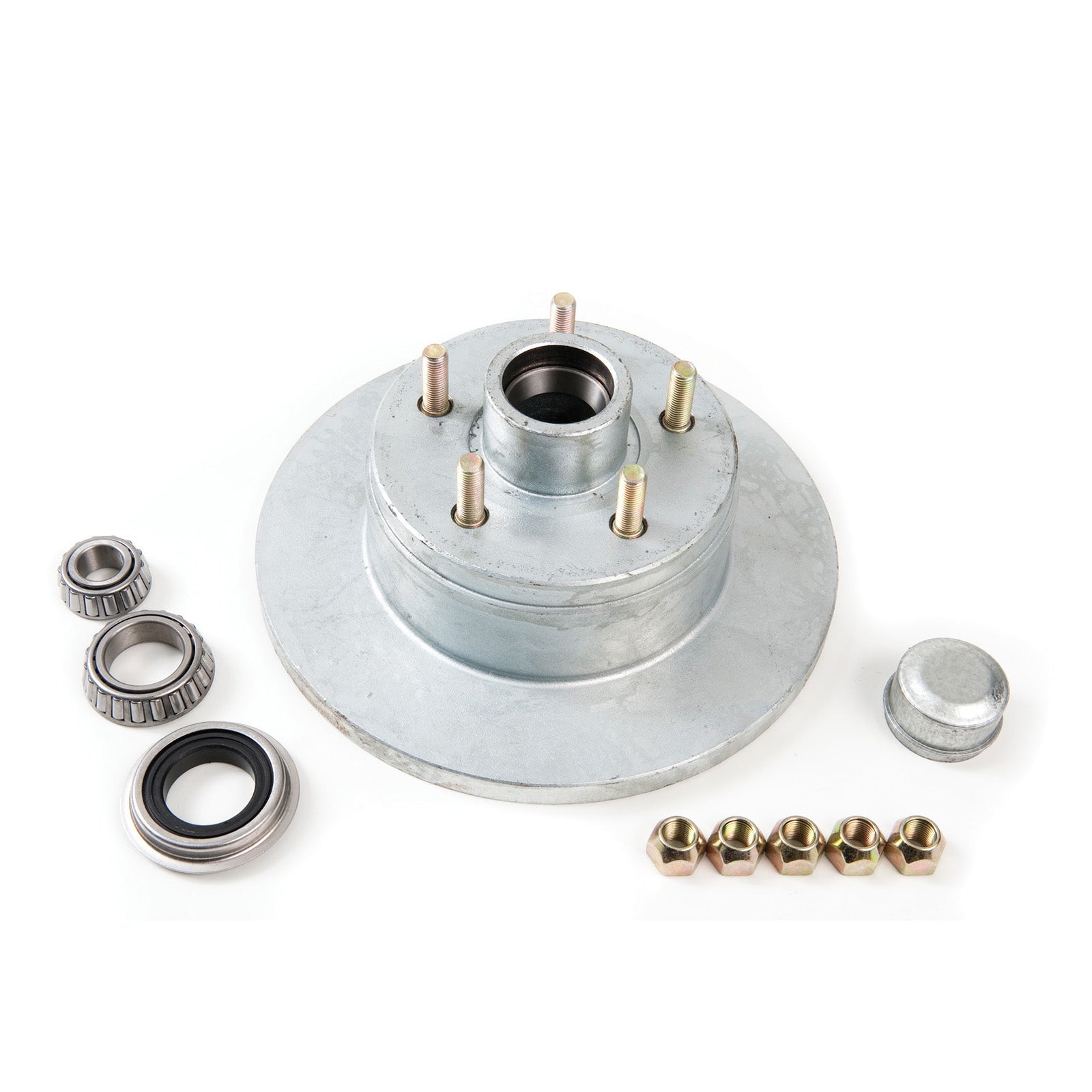

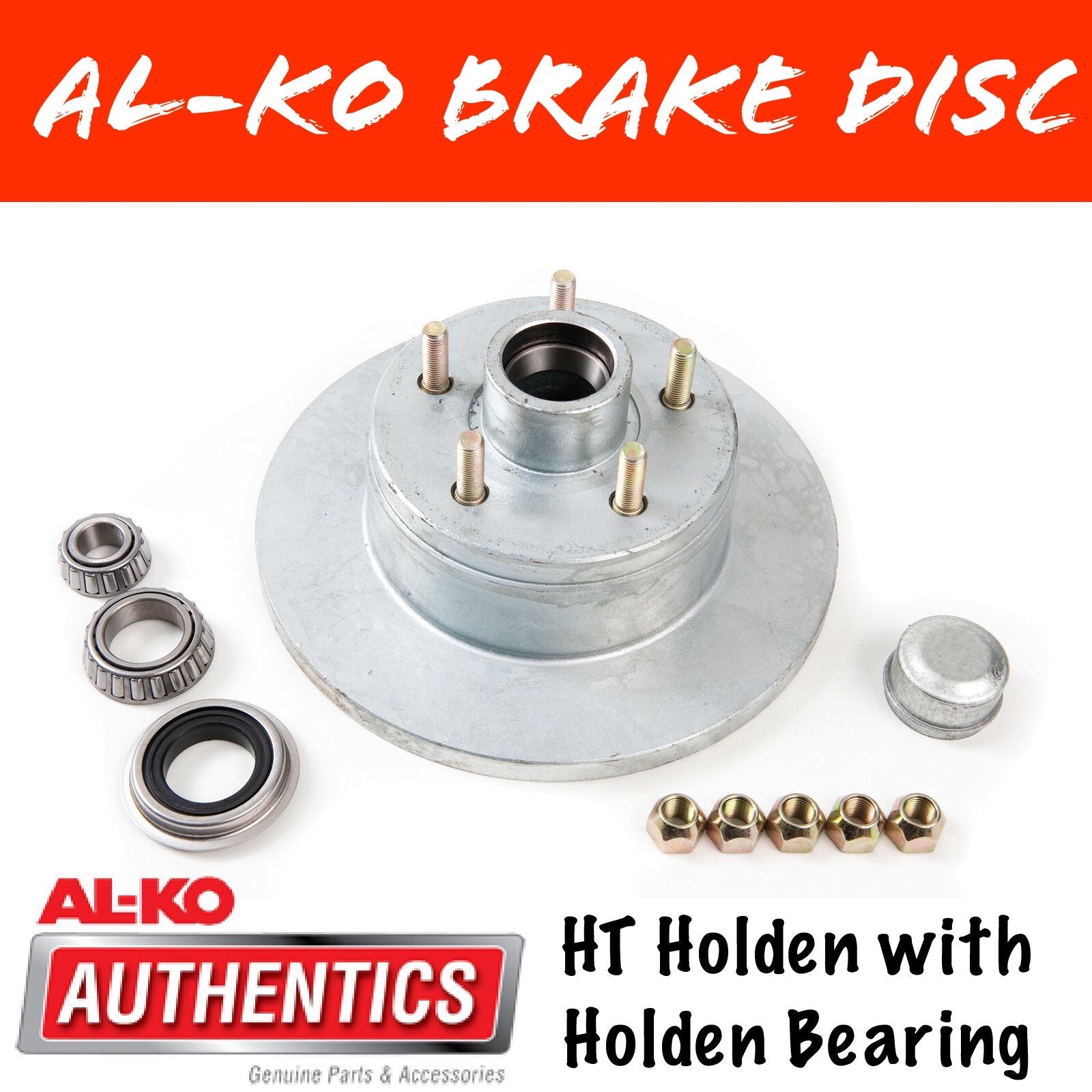

Includes:

  • 1 x Galvanised Disc Hub fitted with 5x 7/16” UNF wheel studs.
  • 5x 7/16” UNF wheel nuts
  • 1 x Bearing Cone LM67048 - Chinese
  • 1 x Bearing Cone LM11949 - Chinese
  • 1 x Marine Seal - LM Type
  • 1 x Grease cap
