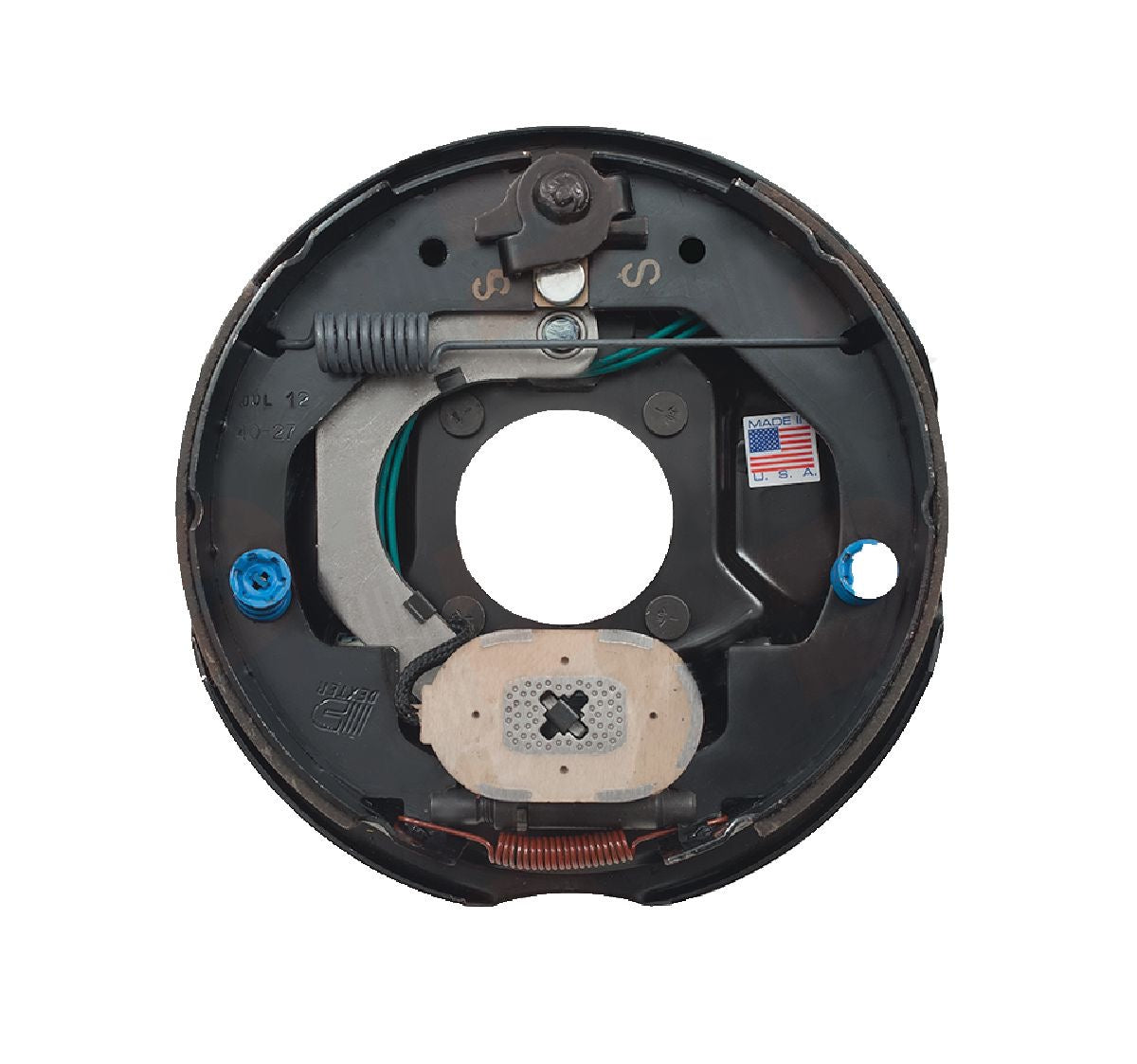

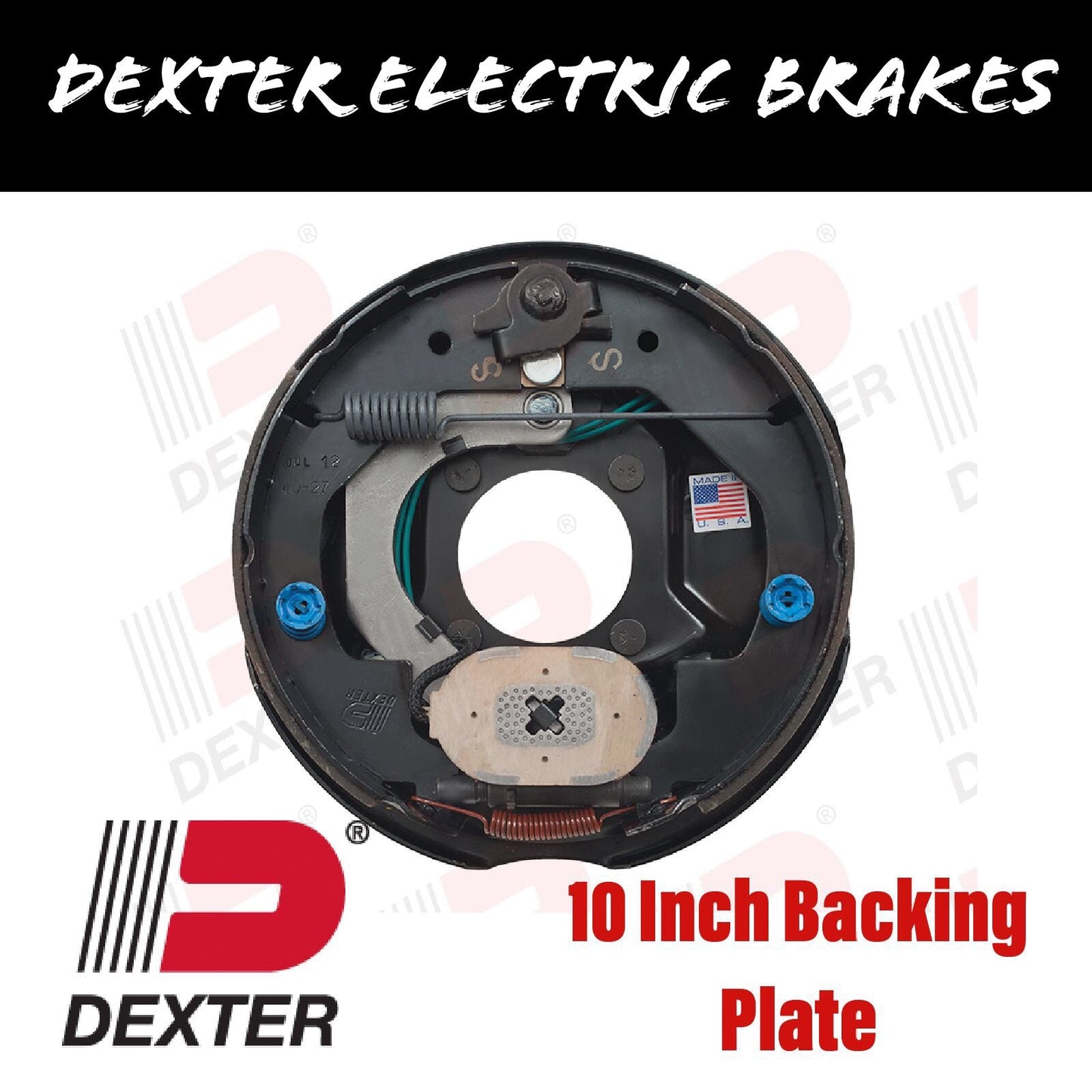

DEXTER 10 INCH COMPLETE BACKING PLATE

DEXTER Electric Brake Kit 10 X 2 1/4" - With Park Brake Feature

Part Number: K23-086-00

Brake assembly fits 3,500-lb (1590 kg) axles.
Mounting flange has 4-bolt pattern.

Features:

• 3,500 lbs (1590 kg) Capacity per pair
• Mounts with 4 bolts (included)
• Bolt holes are 2-7/8” (73mm) apart, center to center
• Uses 10” hub-drums
• 4 Nuts, 4 lock washers, and 2 adjuster plugs sold separately
