AL-KO Marine Hydraulic Brake Calipers Dacromet with S/S Piston

AL-KO Marine Hydraulic Brake Calipers Dacromet with S/S Piston

Regular price $330.00 AUD
Regular price Sale price $330.00 AUD
Sale Sold out

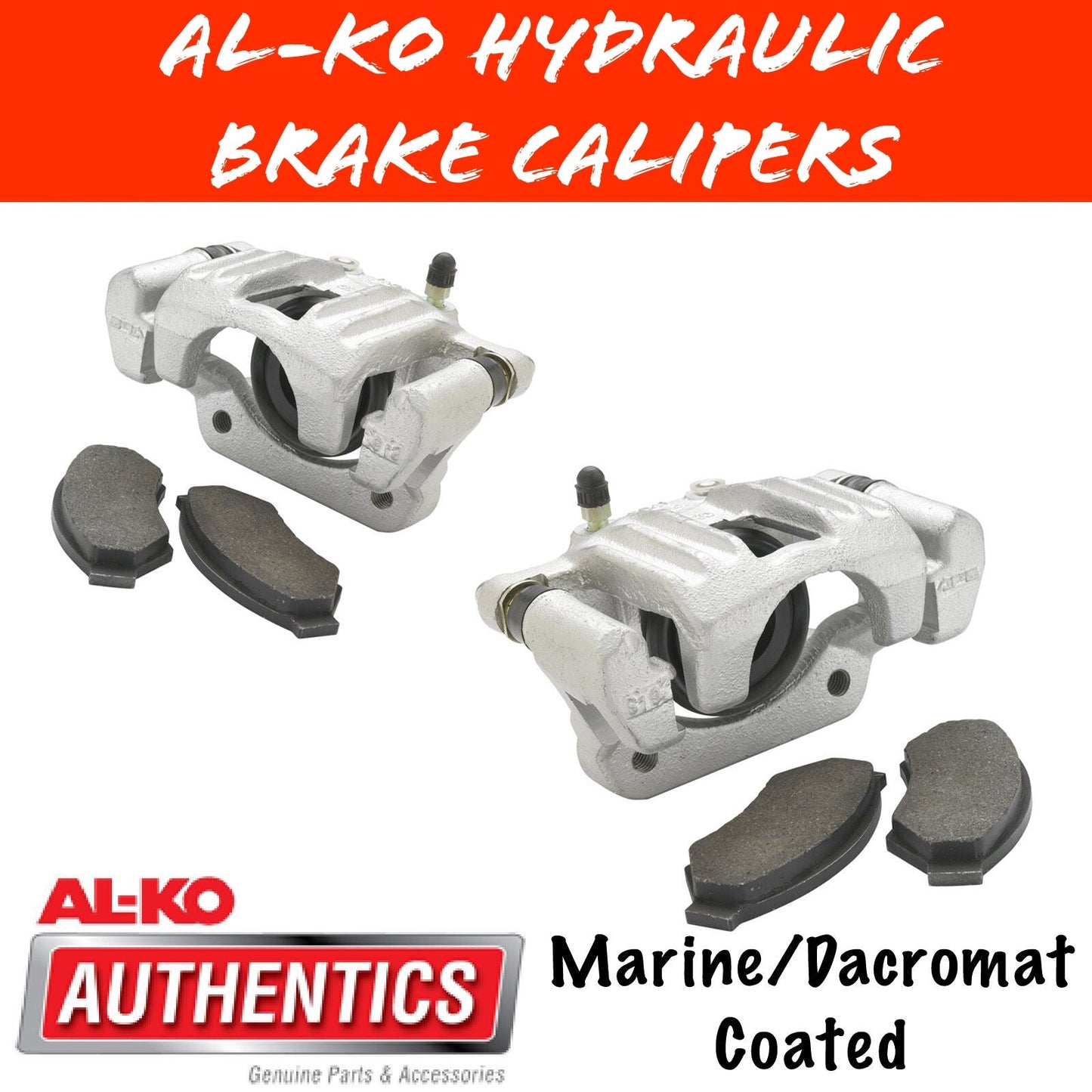

Hydraulic Disc Brake Caliper Set - Dacromet

Part Number: 341001

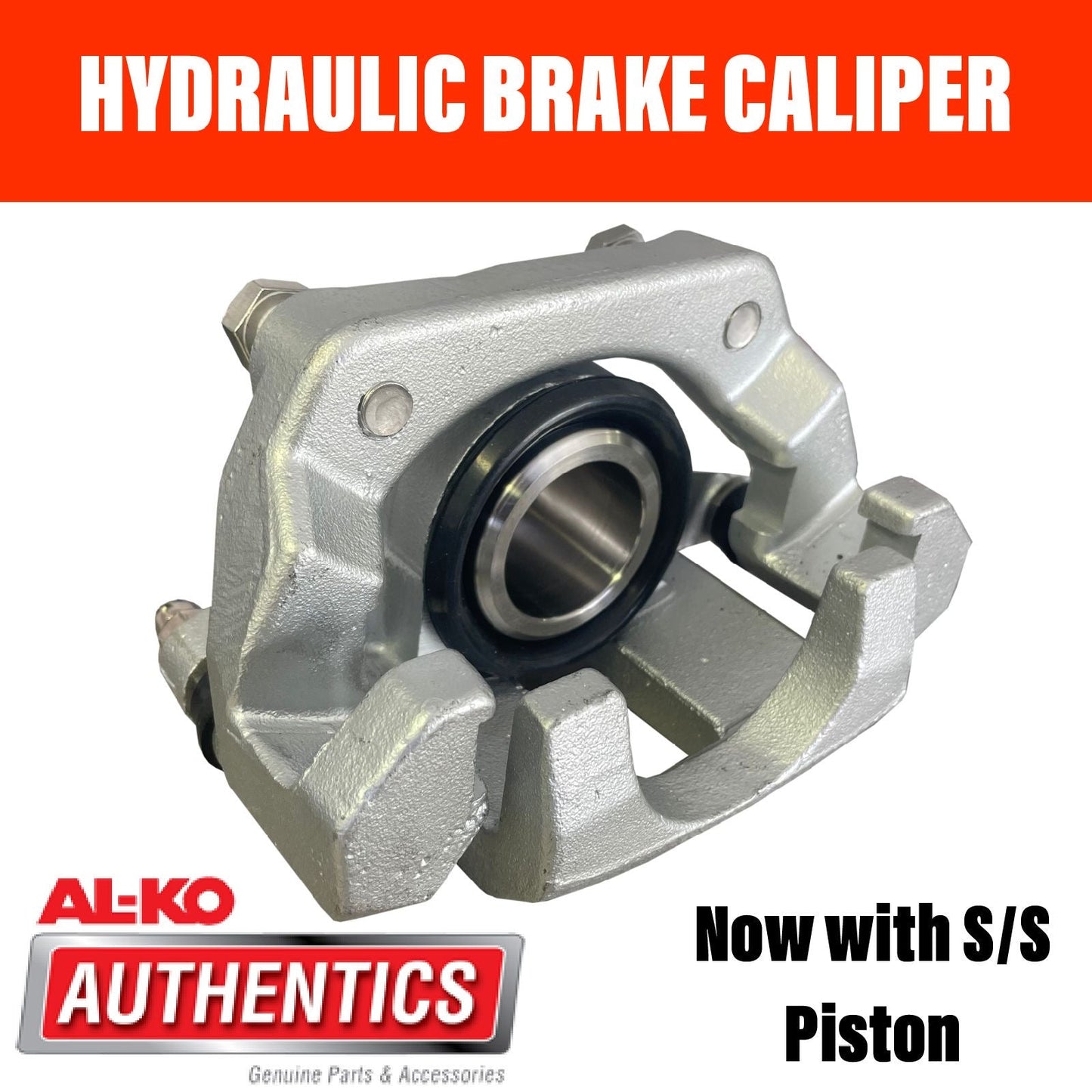

NOW WITH NEW GENIUNE AL-KO STAINLESS STEEL PISTON

Free shipping on all AL-KO Hydraulic Brake Calipers.

AL-KO Dacromet coated hydraulic disc brake calipers are fitted with stainless steel pistons that will not rust.
The simplicity of hydraulic lines connecting multiple calipers makes this style of caliper suitable for installations where more than one axle is used.
Hydraulic disc brake calipers are typically actuated with over ride couplings or an electric over hydraulic actuation system such as AL-KO IQ7.



Hydraulic Disc Brake Caliper Set - Dacromet



Trailers with loaded weights exceeding 2000kg require independent control and breakaway facility, causing the brakes to automatically be activated should the towing vehicle and the trailer become disconnected in transit. AL-KO IQ7 fulfils this legal requirement.

AL-KO hydraulic disc brake calipers are suitable for disc hubs and rotors of thicknesses from 12mm to 15mm.

Recommended operating pressure is 6.9 mpa (1000psi).

Mounting holes: 88.9mm centre to centre. (3.5”)

Includes:

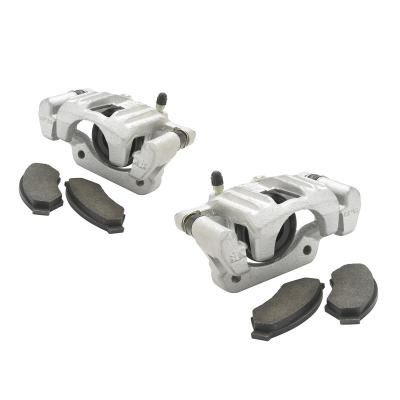

  • 2 x Hydraulic Disc Brake Calipers Finished In Dacromet
  • 4 x Brake Pads
View full details
