AL-KO TRAILTECH 6 INCH Swing Up Jockey Wheel

Jockey Wheel - Trailtech - 6" Wheel - With Large Locking Pin Swivel Bracket

Part Number: 626190BX

The range of Trailtech solid tyre jockey wheels are lighter duty than our premium range.

Jockey Wheel - Trailtech - 6" Wheel - With Large Locking Pin Swivel Bracket

Specifications:

• Surface finish: Zinc Plated
• Static Capacity: 350kg
• Outer Tube Dia.: 48mm
• Weight: 6.75kg
• Wheel Dia.: 150mm
• Mount holes per side: 4
• Mounting Hole Dia.: 14mm

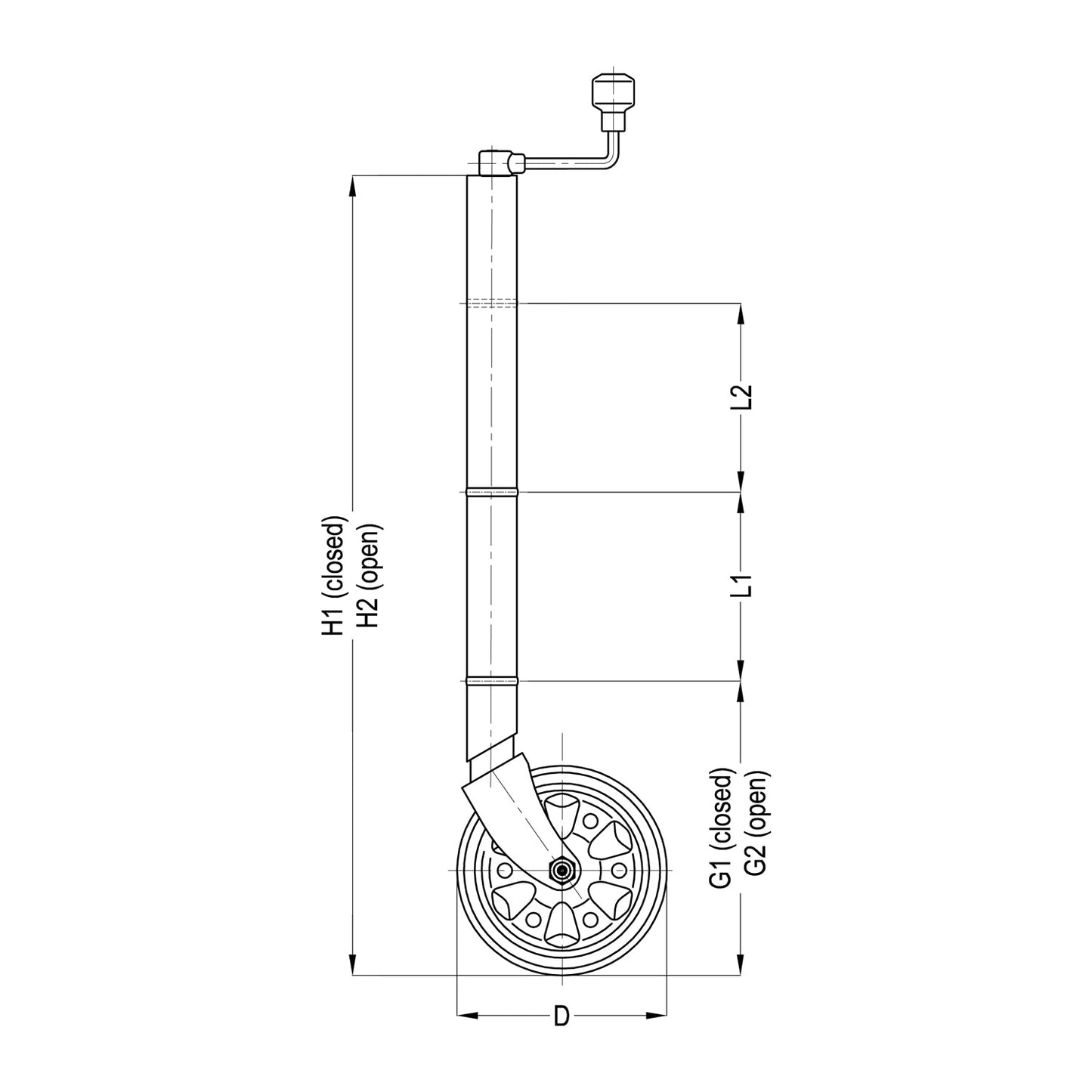

• Min Spacing (U1): 63mm
• Max Spacing (U2): 113mm
• Height Closed (H1):510mm
• Height Open (H2):760mm
• Bottom of wheel to mounting plate center when closed (G1): 310mm
• Bottom of wheel to mounting plate center when closed (G2): 560mm
