R&M Trailer Spares
AL-KO TRAILTECH 6 INCH Clamp On Jockey Wheel
AL-KO TRAILTECH 6 INCH Clamp On Jockey Wheel
Regular price
$79.00 AUD
Regular price
Sale price
$79.00 AUD
Unit price
/
per
Couldn't load pickup availability
Share
Jockey Wheel - Trailtech - 6" Wheel - With Weld On Or Bolt On Clamp
Part Number: 626050BX
The range of Trailtech solid tyre jockey wheels are lighter duty than our premium range.
Jockey Wheel - Trailtech - 6" Wheel - With Weld On Or Bolt On Clamp
Specifications:
- Surface finish: Zinc Plated
- Static Capacity: 350kg
- Outer Tube Dia.: 48mm
- Weight: 5kg
- Wheel Dia.: 150mm
- Mount holes per side: 1
- Mounting Hole Dia.: 13mm
- Hole spacing: 150mm

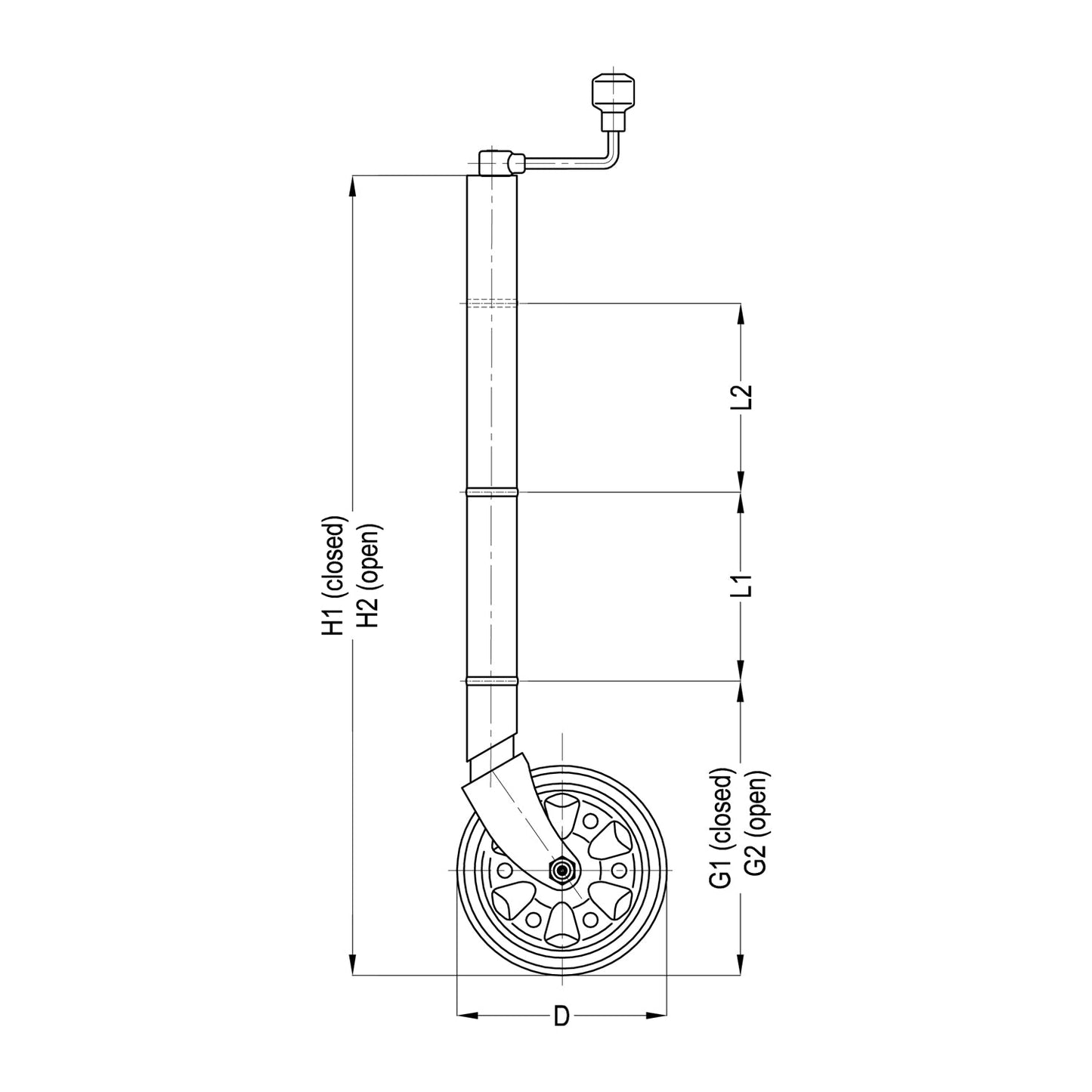

- Height Closed (H1):510mm
- Height Open (H2):760mm
- Bottom of wheel to bottom rib center when closed (G1): 202mm
- Bottom of wheel to bottob rib center when closed (G2): 457mm
