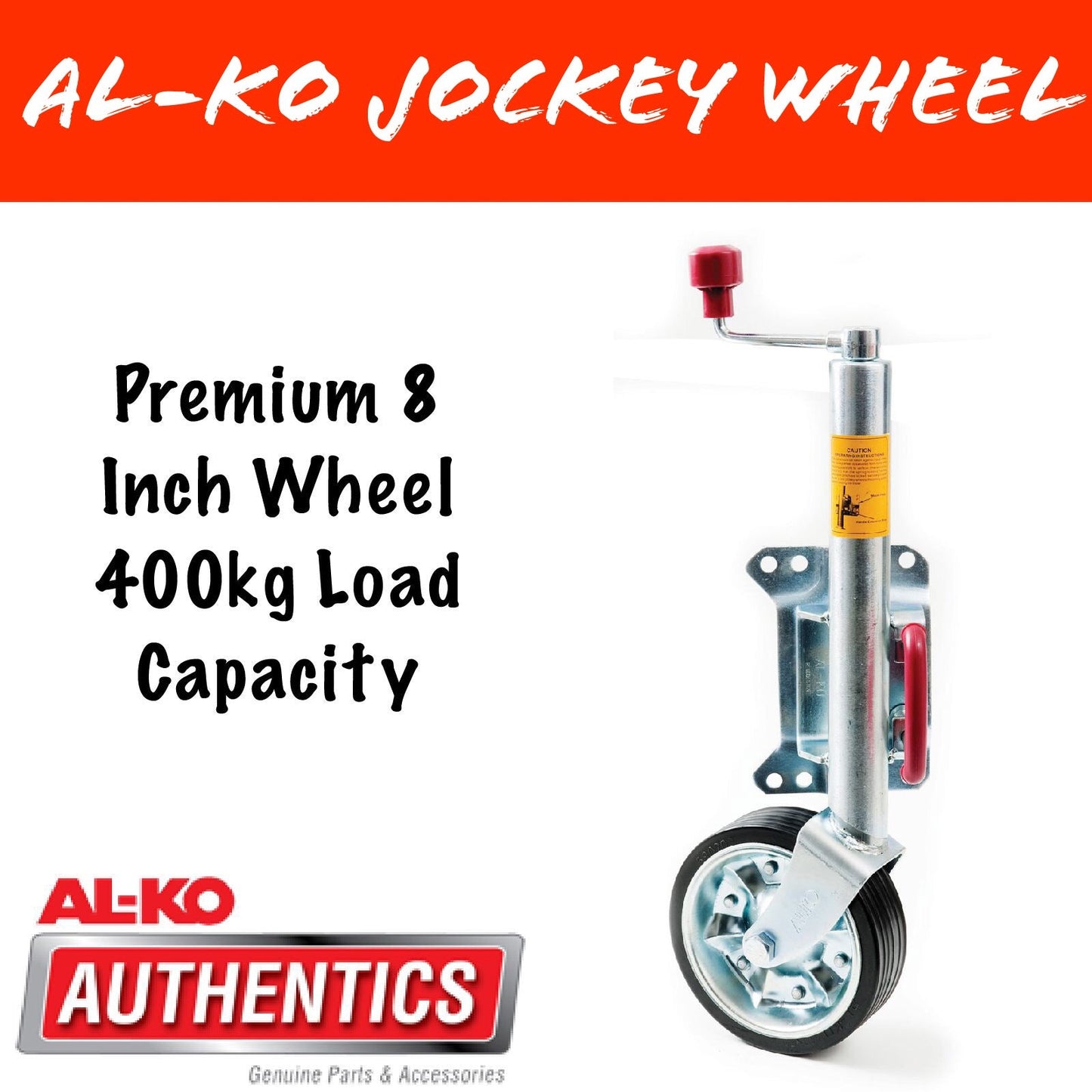

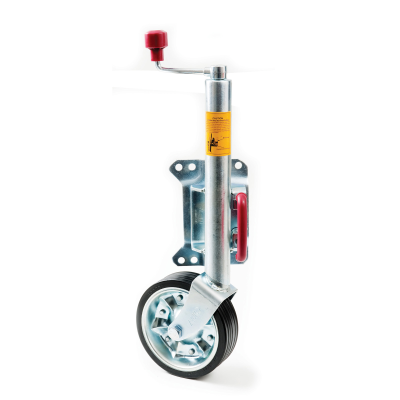

Jockey Wheel - 8" Wheel - With Large Locking Pin Swivel Bracket
Part Number: 628200BX
Ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel. No need to remove it from the trailer - just pull the release handle and the jockey wheel rotates into a suitable traveling position. This unique design is covered by Registered Design in Australia and New Zealand. The swivel bracket can be either welded or bolted to the drawbar. A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar. Ideal for marine use.
Jockey Wheel - 8" Wheel - With Large Locking Pin Swivel Bracket
Specifications:
Surface finish: Zinc Plated
Static Capacity: 400kg
Outer Tube Dia.: 48mm
Weight: 8.5kg
Wheel Dia.: 200mm
Mount holes per side: 4
Mounting Hole Dia.: 14mm
Min Spacing (U1): 63mm
Max Spacing (U2): 113mm

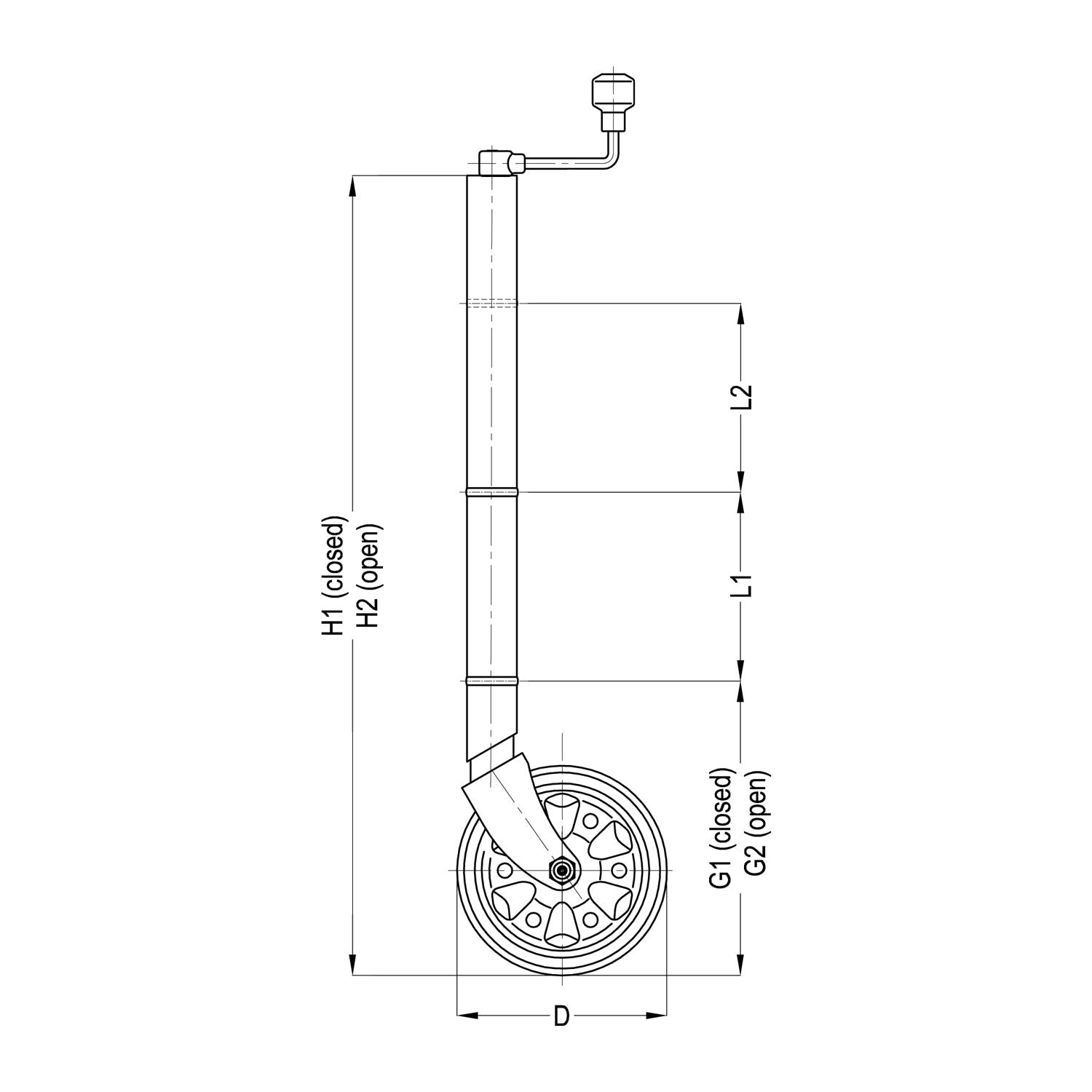

Height Closed (H1):570mm
Height Open (H2):820mm
Bottom of wheel to mounting plate center when closed (G1): 310mm
Bottom of wheel to mounting plate center when open (G2): 560mm
