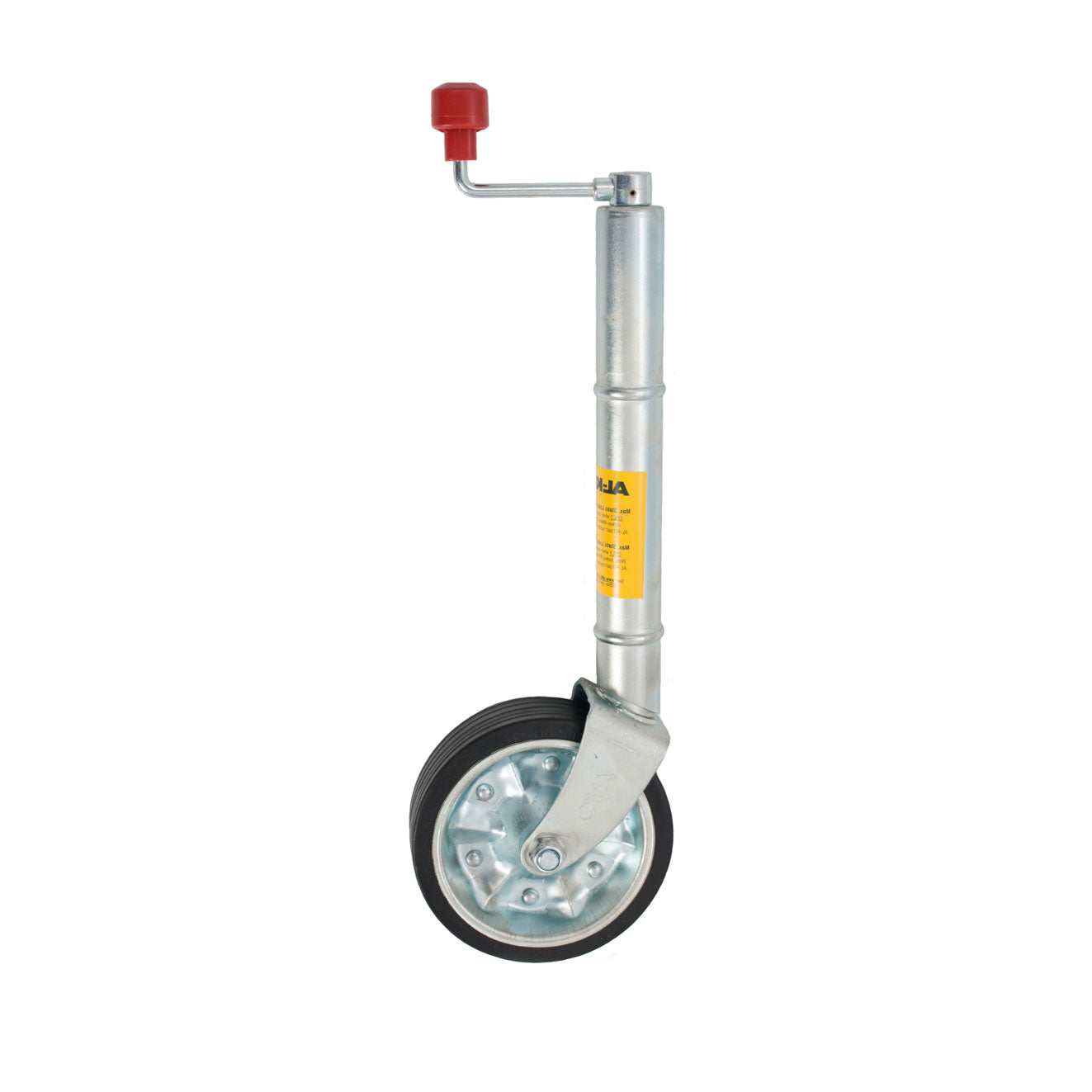

AL-KO 8 INCH PREMIUM Clamp On Jockey Wheel

Jockey Wheel - 8" Wheel

Part Number: 628100BX

Jockey Wheel - 8" Wheel

Specifications:

• Surface finish: Zinc Plated
• Static Capacity: 400kg
• Outer Tube Dia.: 48mm
• Weight: 7kg
• Wheel Dia.: 200mm
• Mount holes per side: 1
• Mounting Hole Dia.: 13mm
• Hole spacing: 150mm

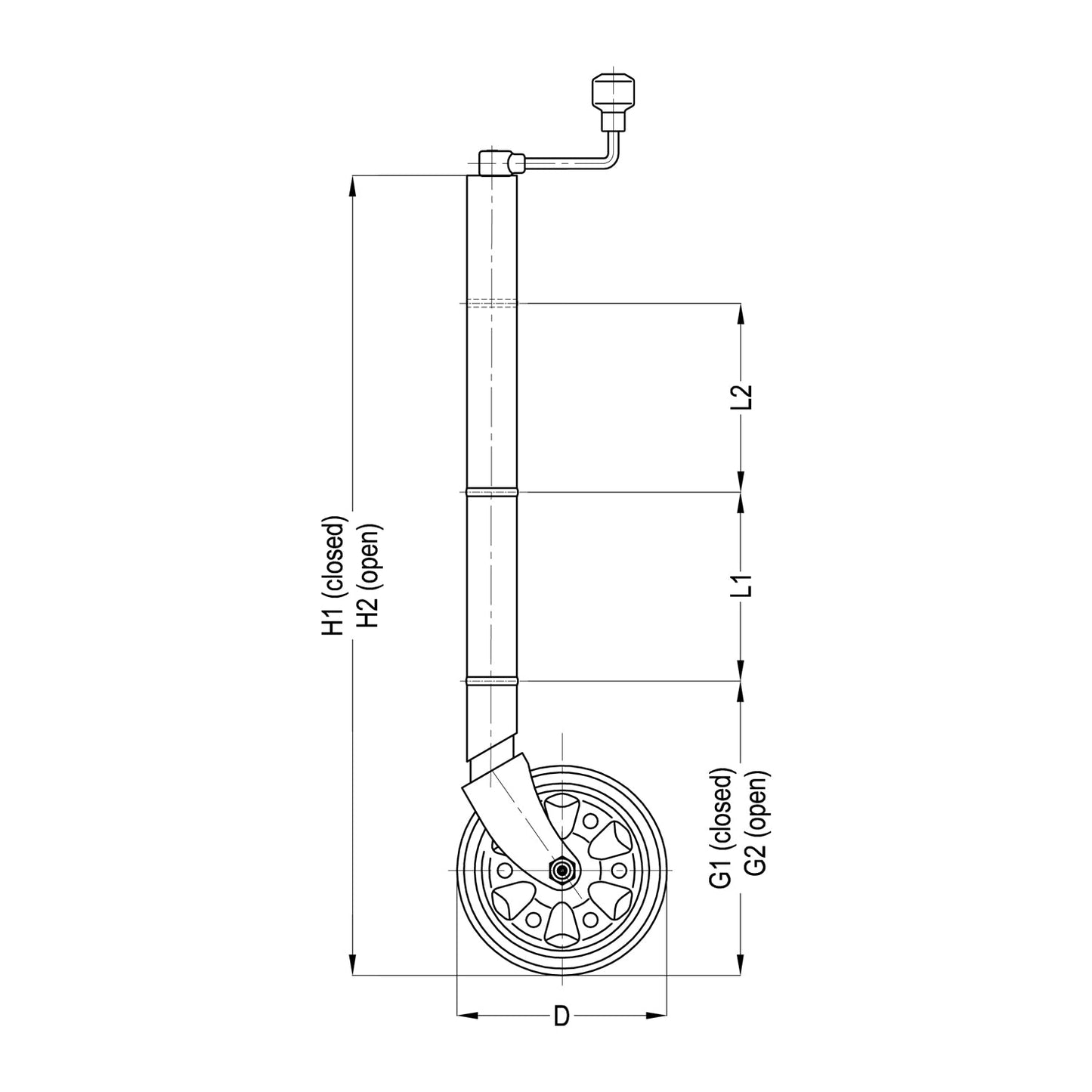

• Height Closed (H1):567mm
• Height Open (H2):832mm
• Bottom of wheel to bottom rib center when closed (G1): 262mm
• Bottom of wheel to bottob rib center when closed (G2): 522mm
