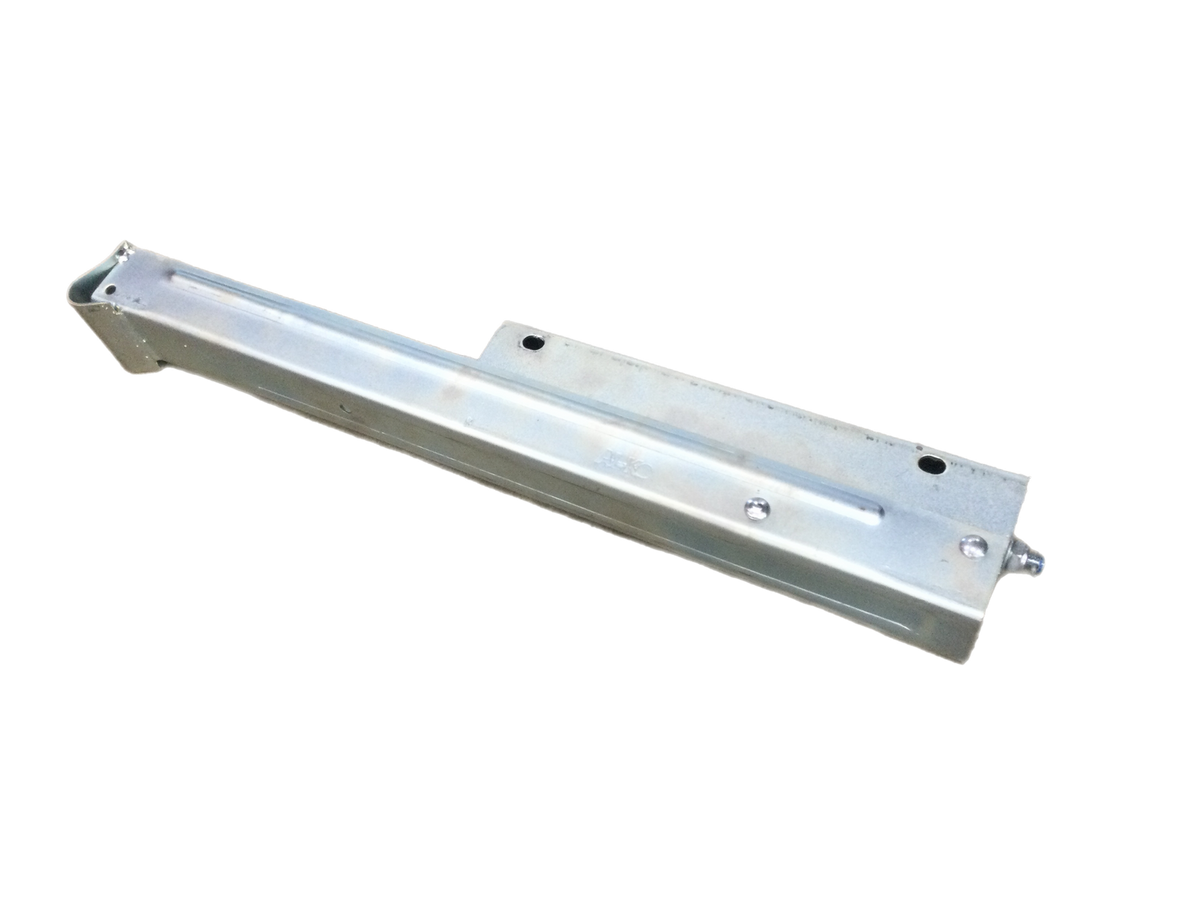

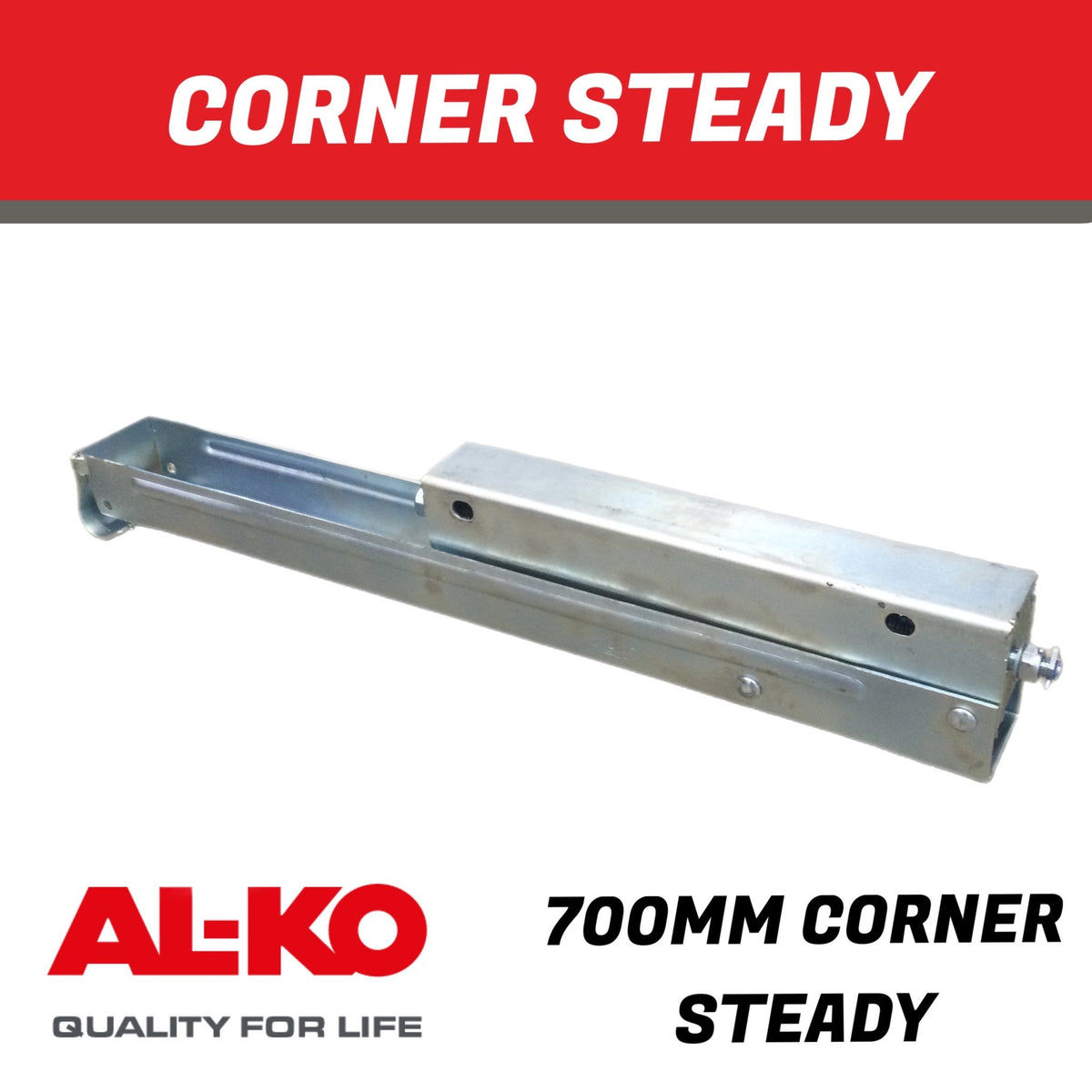

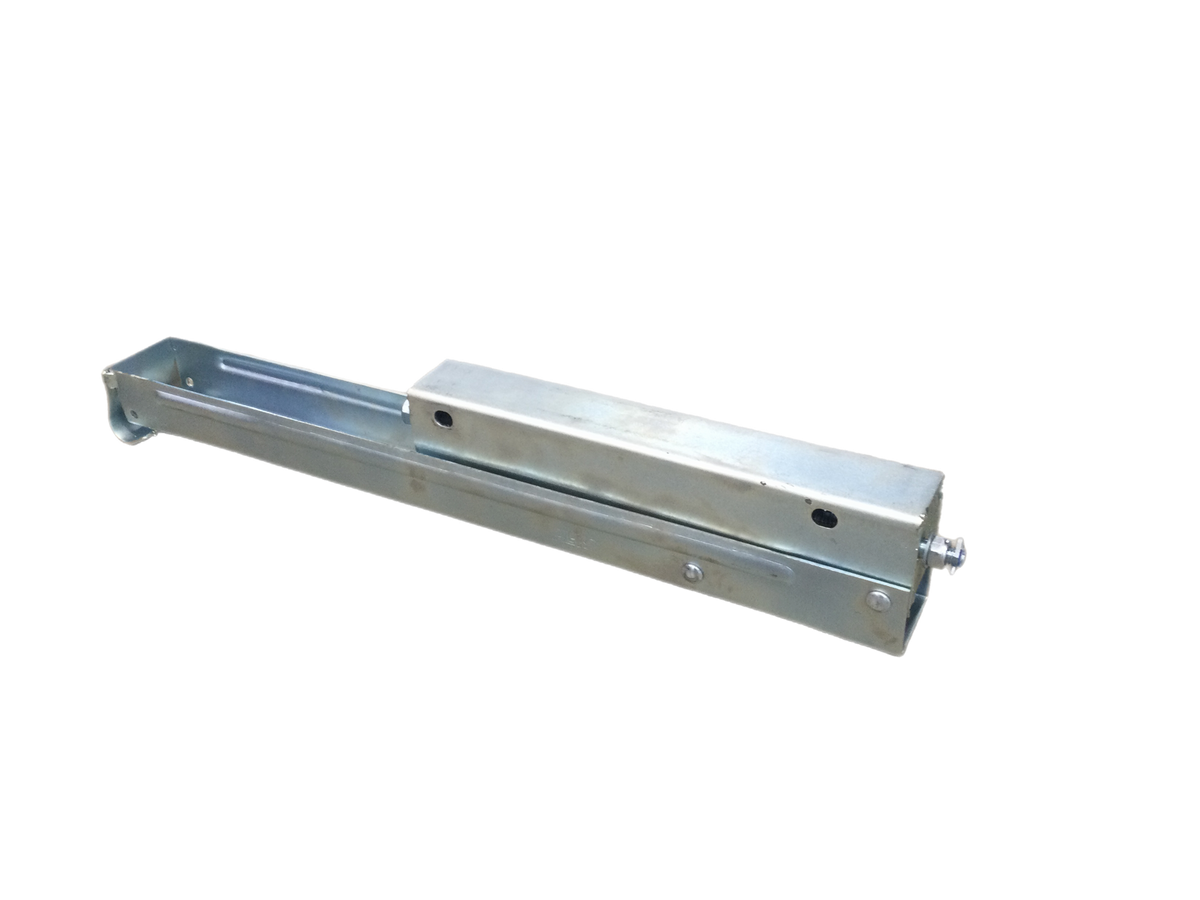

AL-KO 700mm Hex Drive Corner Steady – No Wheel | 654701

Genuine AL-KO 700mm Hex Drive Corner Steady – P/N 654701

The AL-KO 700mm Hex Drive Corner Steady is a heavy-duty wind-down stabilising leg designed for caravans, camper trailers and other trailer applications.

Featuring a 700mm leg length, metric thread and hex drive, this no-wheel corner steady provides reliable support and stabilisation when your caravan or trailer is parked.

The zinc-plated finish provides corrosion protection, while the side-bolt mounting arrangement makes it suitable as a replacement for compatible AL-KO corner steadies or for new caravan and trailer builds.

Key Features

• Genuine AL-KO corner steady
• Part Number: 654701
• 700mm leg length
• No wheel
• Metric thread
• Hex drive
• Zinc-plated finish
• Side-bolt mounting
• 250mm mounting spacing
• 14mm × 10mm mounting slots
• Heavy-duty caravan and trailer construction
• Ideal replacement for worn or damaged corner steadies

Specifications

700mm Leg Length

The longer 700mm leg makes this corner steady particularly useful for caravans and trailers where additional reach is required compared with shorter 500mm or 600mm steadies.

Before ordering, compare the dimensions and mounting points with your existing corner steady to ensure correct fitment.

Hex Drive Adjustment

The hex drive allows the steady to be wound up and down using a compatible AL-KO hex-drive corner steady handle.

Once the caravan or trailer is correctly positioned, the steady can be lowered firmly against the ground to help reduce unwanted movement while parked.

Side-Bolt Mounting

This version features:

• Side-bolt mounting
• 250mm mounting spacing
• 14mm × 10mm mounting slots

These dimensions are important when replacing an existing steady, as AL-KO also manufactures a different 700mm top-mount version.

Important – Check Which 700mm Version You Need

AL-KO manufactures more than one 700mm hex-drive corner steady.

This P/N 654701 version is:

Zinc plated – side bolt – 250mm mounting spacing – 14 × 10mm mounting slots.

Do not confuse it with P/N 654701G, which is the galvanised top-bolt version.

Ideal For

• Caravans
• Camper trailers
• Touring trailers
• Utility trailers
• Replacement caravan corner steadies
• New caravan and trailer builds

What's Included

• 1 × Genuine AL-KO 700mm Hex Drive Corner Steady – P/N 654701

Hex drive handle and mounting hardware are not included unless otherwise stated.

Important

Corner steadies are designed to stabilise a stationary caravan or trailer.

They should not be used as a jack or as the primary means of lifting a caravan or trailer.
