R&M Trailer Spares

AL-KO 2 Ton Brake Disc 6 Stud

AL-KO 2 Ton Brake Disc 6 Stud

Regular price $229.00 AUD
Regular price Sale price $229.00 AUD
Sale Sold out

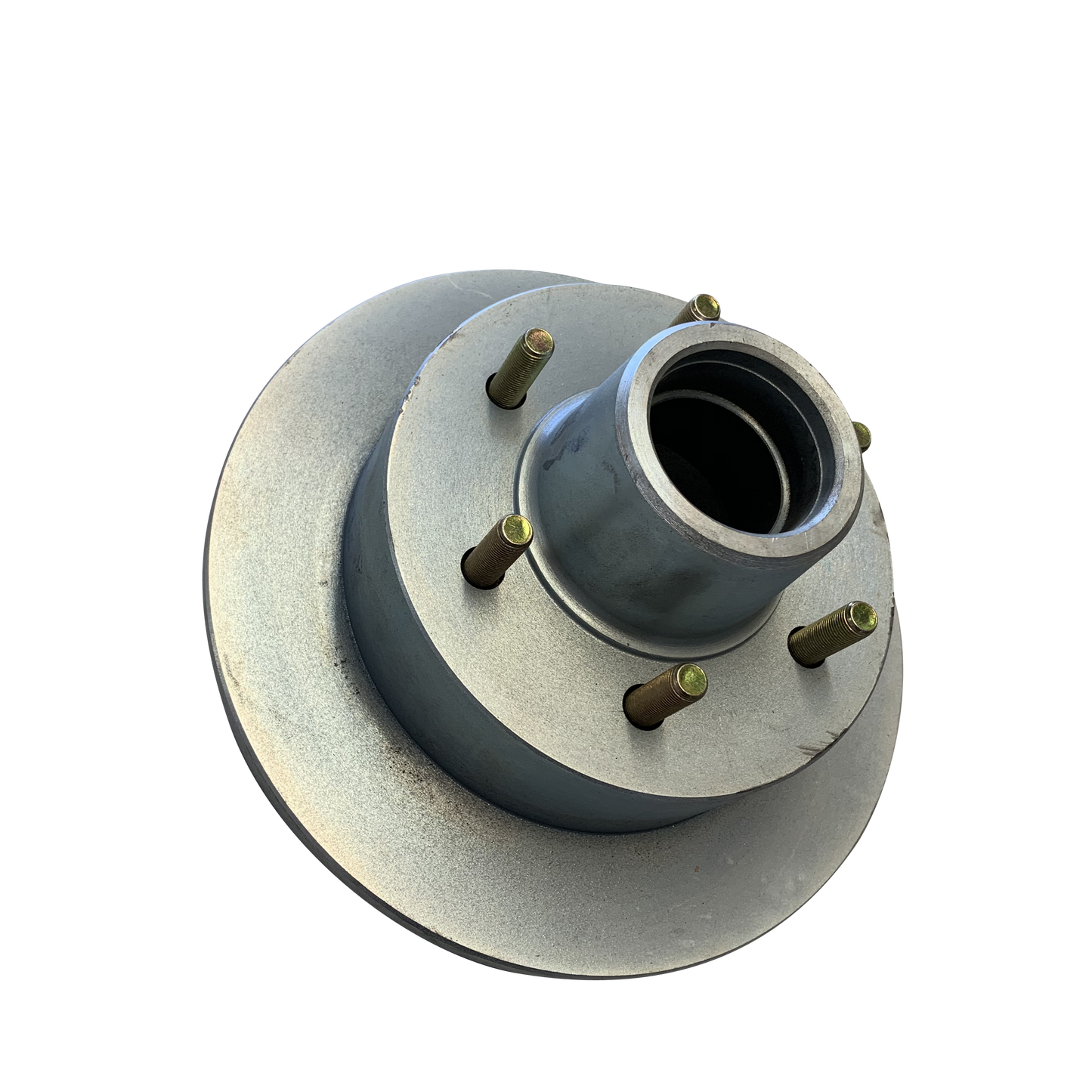

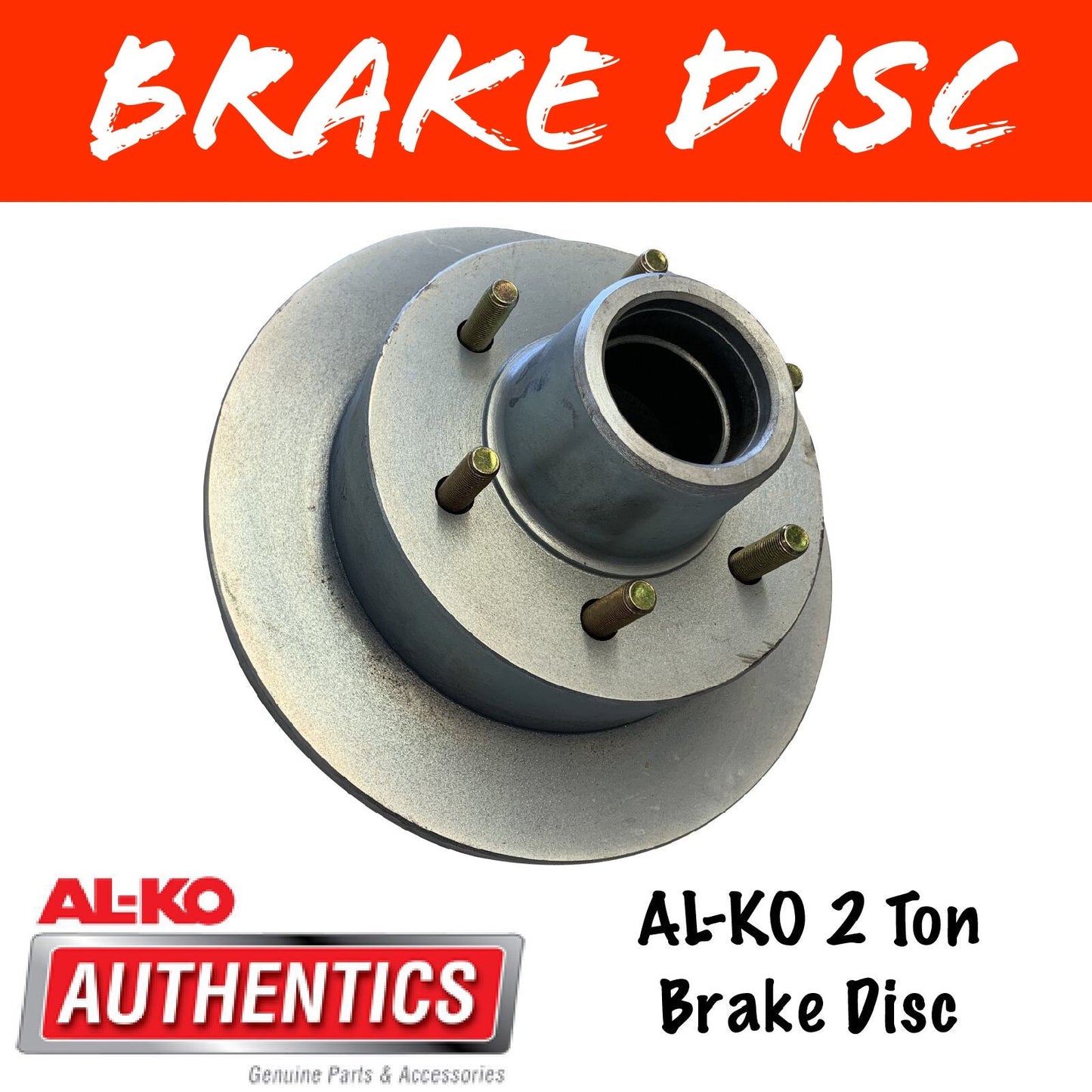

Disc Hub - AL-KO 2 Ton

Part Number: 432127



AL-KO 2 Ton Disc Hub - Suits AL-KO 2 Ton Bearings

Outer: 30210/10

Inner: 15123/245



All of AL-KO's hubs are manufactured from high grade ductile iron to give maximum achievable strength.
Some of AL-KO's hubs are available in zinc plated or hot dipped galvanised finish as well as the traditional raw cast finish.

The capacity of a hub is dependent on the size of wheel bearings fitted and such dimensional limits such as flange diameter and the available hole in the wheel to which it is fitted (on the hub this is the hub outer boss dimension).

To ascertain what hub from the vast AL-KO range is required it is important to know the following:

  • Total load you expect a pair of hubs to carry in kg.
  • Wheel bearing type to be fitted (LM, slimline, 1.5 t, etc).
  • Wheel drilling pattern (4 stud Datsun, 5 stud Mini, 5 Stud HQ Holden, 5 stud Ford, 6 stud Landcruiser).



Disc Hub, Landcruiser Stud Pattern (6x 139.7mm PCD)
Fitted with 1/2” UNF wheel studs and nuts.

Includes:

  • 1 x Disc Hub fitted with 6x 1/2” UNF wheel studs.
  • 6x 1/2” UNF wheel nuts
